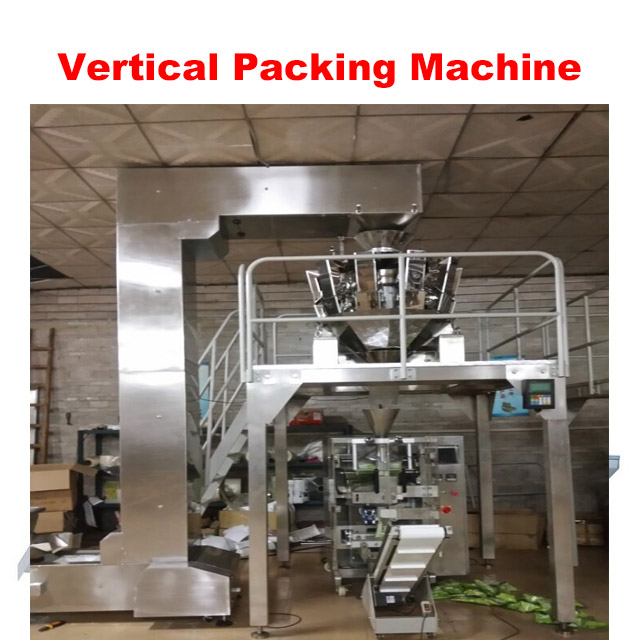

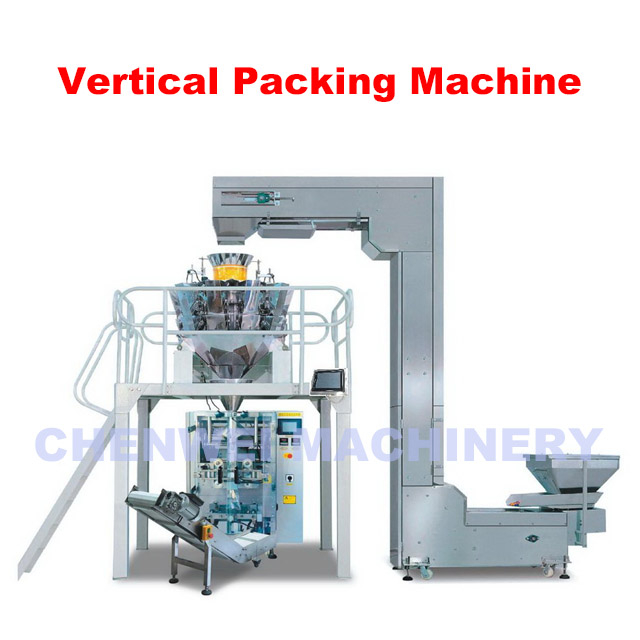

Description: The vertical packing machine system consists of vertical packing machine,multi-head weigher,bucket elevator,vibrating feeder,finished products conveyor,platform and control cabinet.It is suitable for packing material suck as candy, pistachio, apple slices, dumplings, chocolate, pet food,potato chips,biscuit,jelly,snack food,rice,corn,wheat,seed,spices,bolts etc
Function: Completely automatic weighing, filling, film-pulling,bag-making, bag-punching(holing), printing and quantity-counting.
Description: The vertical packing machine system consists of vertical packing machine,multi-head weigher,bucket elevator,vibrating feeder,finished products conveyor,platform and control cabinet.It is suitable for packing material suck as candy, pistachio, apple slices, dumplings, chocolate, pet food,potato chips,biscuit,jelly,snack food,rice,corn,wheat,seed,spices,bolts etc
Function: Completely automatic weighing, filling, film-pulling,bag-making, bag-punching(holing), printing and quantity-counting.
Technical characteristics: 1. English and Chinese screen display ,operation is simple . 2. PLC computer system , function is more stable , adjustment any parameters not need stop machine. 3. It can stock ten dispose , simple to change variety. 4. Sever motor drawing film , position accurately. 5. Temperature independent control system ,precision get to±1°C. 6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material. 7. Packing type diversification , pillow sealing, standing type ,punching etc. 8. Bag–making , sealing, packing, print date in one operation. 9. Work circumstance quiet, low noise.
Model
CWVP420
CWVP520
Bag Width
60-200mm
100-250mm
Bag Length
60-300mm
80-350mm
Packing material
BOPP/CPP，PET/AL/PE
BOPP/CPP，PET/AL/PE
Accuracy
≤±1.5%
≤±1.5%
Film thickness
0.06-0.08mm
0.06-0.08mm
Max width of the film roll
420mm
520mm
Packing speed
5-70 bags/min
10-45 bags/min
Air pressure
0.8Mpa
0.8Mpa
Air consumption
0.5M³/min
0.5M³/min
Voltage
240V/380V/415V
240V/380V/415V
Total power
7Kw
7Kw
Dimension of packing machine
1530*1100*1600mm
1650*1200*1600mm
Technical characteristics: 1. English and Chinese screen display ,operation is simple . 2. PLC computer system , function is more stable , adjustment any parameters not need stop machine. 3. It can stock ten dispose , simple to change variety. 4. Sever motor drawing film , position accurately. 5. Temperature independent control system ,precision get to±1°C. 6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material. 7. Packing type diversification , pillow sealing, standing type ,punching etc. 8. Bag–making , sealing, packing, print date in one operation. 9. Work circumstance quiet, low noise.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
