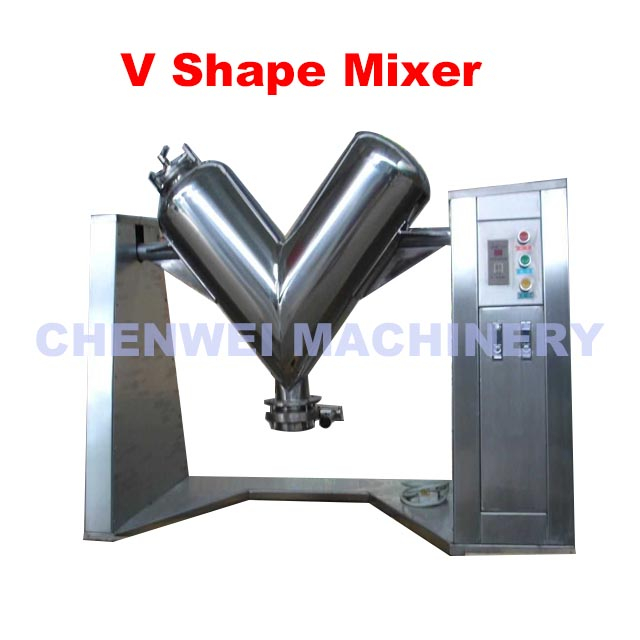

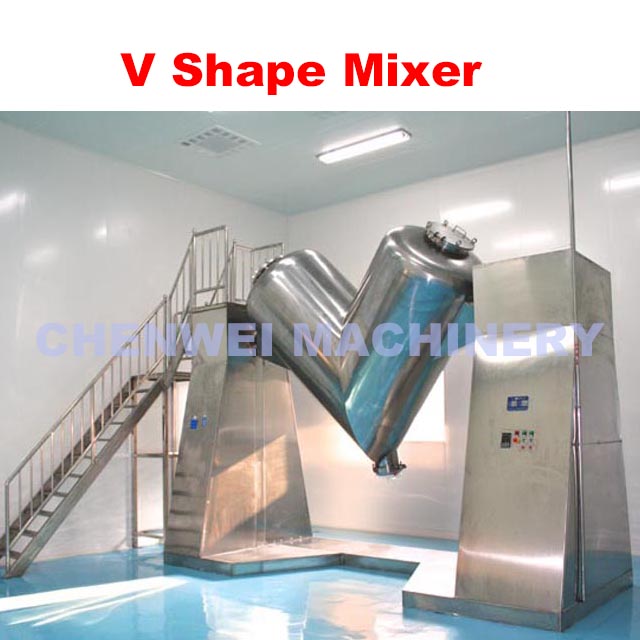

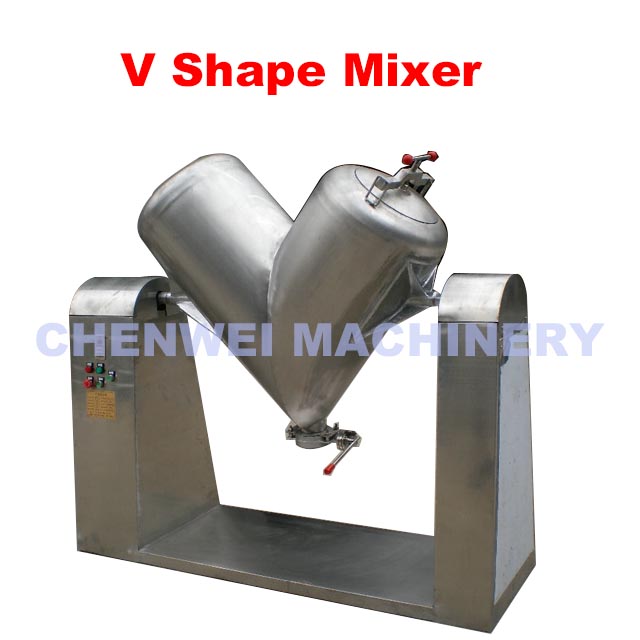

V shape mixer consists of two V-shells of different or same altitudes, and through mechanical transmission, the materials in these shells are made to move back and forth, crossed over and rotate 360 degree to achieving ultimate uniform mixing.It adopts manual feed and closed disc valve discharge, which can avoid dust spilling.
Industrial V shape dry powder mixer are commonly used in pharmaceutical, nutriceutical, chemical, food and related industries to mix dried powder and granules.
V shape mixer consists of two V-shells of different or same altitudes, and through mechanical transmission, the materials in these shells are made to move back and forth, crossed over and rotate 360 degree to achieving ultimate uniform mixing.It adopts manual feed and closed disc valve discharge, which can avoid dust spilling.
Industrial V shape dry powder mixer are commonly used in pharmaceutical, nutriceutical, chemical, food and related industries to mix dried powder and granules.
Model
CWV-500
CWV-1000
CWV-1500
CWV-2000
CWV-2500
CWV-3000
CWV-4000
Volume(CBM)
0.5
1.0
1.5
2.0
2.5
3.0
4.0
Capacity kg/batch
100
250
400
600
800
1200
1500
Mixing time (min)
6-12
6-15
8-20
8-20
8-20
8-20
10-30
Turning speed
12
12
12
12
12
12
10
Power (kw)
2.2
4
4
5.5
7.5
11
15
Weight (kg)
550
900
1200
1400
1800
2100
2800
Model
CWV-500
CWV-1000
CWV-1500
CWV-2000
CWV-2500
CWV-3000
CWV-4000
Volume(CBM)
0.5
1.0
1.5
2.0
2.5
3.0
4.0
Capacity kg/batch
100
250
400
600
800
1200
1500
Mixing time (min)
6-12
6-15
8-20
8-20
8-20
8-20
10-30
Turning speed
12
12
12
12
12
12
10
Power (kw)
2.2
4
4
5.5
7.5
11
15
Weight (kg)
550
900
1200
1400
1800
2100
2800
1. Mirror polished of inner and outer shell to meet GMP standard. 2. No blind angle in the V-shells, no accumulation of materials, high speed I-bar, efficient and short mixing time. 3. Mixing uniformity can reach 99% 4. Rotating valve is equipped for discharging 5. Fully integrated motors and controls 6. Can work with vacuum feeding system to create dust-free working condition. 7.Running steady without noise 8.This machine can be equipped with a timing device, it can set mixing time to realize automatic stop 9.Agitator can be equipped to strengthen the mixing effect. 10.Vacuum feeder can be equipped to achieve automatic feeding and prevent dust
1. Mirror polished of inner and outer shell to meet GMP standard. 2. No blind angle in the V-shells, no accumulation of materials, high speed I-bar, efficient and short mixing time. 3. Mixing uniformity can reach 99% 4. Rotating valve is equipped for discharging 5. Fully integrated motors and controls 6. Can work with vacuum feeding system to create dust-free working condition. 7.Running steady without noise 8.This machine can be equipped with a timing device, it can set mixing time to realize automatic stop 9.Agitator can be equipped to strengthen the mixing effect. 10.Vacuum feeder can be equipped to achieve automatic feeding and prevent dust
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
