Stainless steel Coarse Crusher

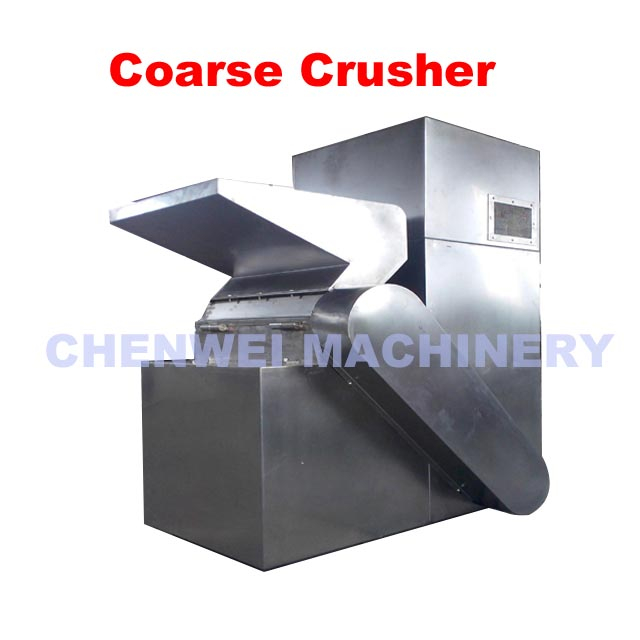

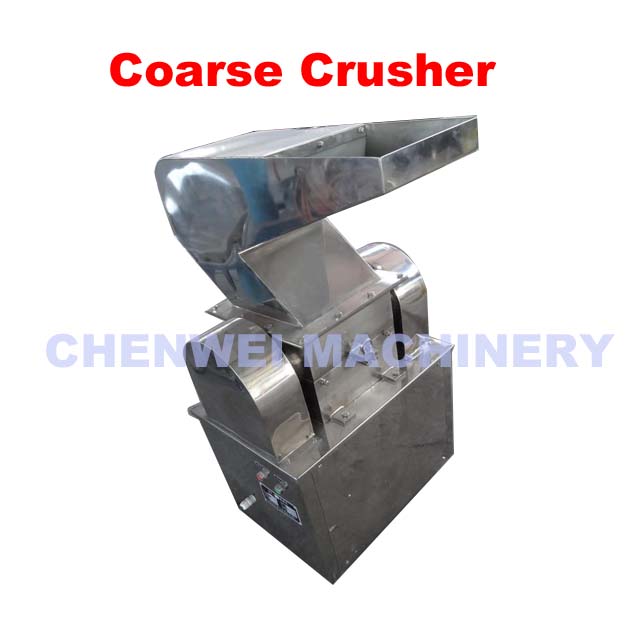

Stainless Steel Coarse Crusher
Surface treatment: polishing or sandblast
Quantity:
  • CW-300

  • CHENWEI

  • 2-20mm

  • As per order

  • 150mm

  • 300-500kg

Working principle :
This coarse crusher has horizontal crushing structure with whole stainless steel construction.  the material is fed into the crushing chamber through a hopper, crushed by cutting and  impact of both fixed and rotating knives, and flows of the exit automatically under the effect of rotating centrifugal force. Designed according to "GMP" standard and wholly made of  stainless steel,this machine has simple structure, convenient cleaning and low noise, being  the ideal  equipment for coarse crushing.



Model Capacity Feeding Size Output Size  Motor Speed Power Weight
CW-80 10-100kg/h ≤50mm 0.5-20mm 960r/min 1.5KW 100kg
CW-120 50-200kg/h ≤100mm 0.5-20mm 960r/min 3KW 150kg
CW-200 80-300kg/h ≤100mm 0.5-20mm 960r/min 4KW 200kg
CW-300 150-500kg/h ≤100mm 0.5-20mm 960r/min 7.5KW 300kg
CW-500 200-800kg/h ≤100mm 0.5-20mm 960r/min 22KW 600kg
