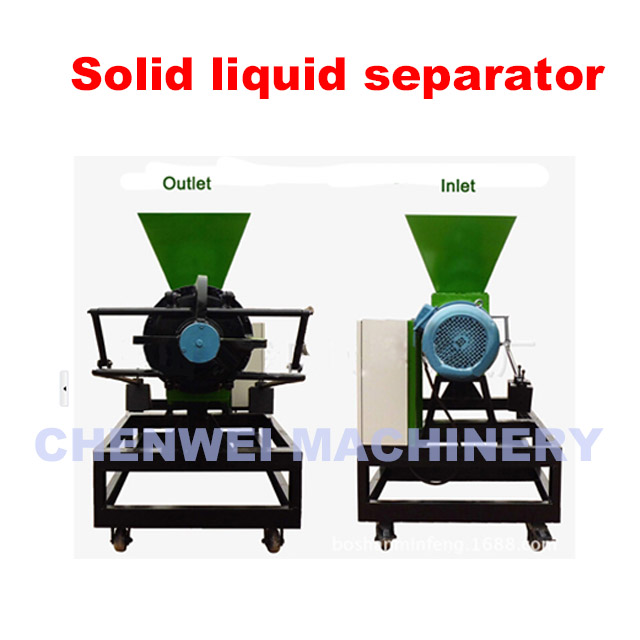

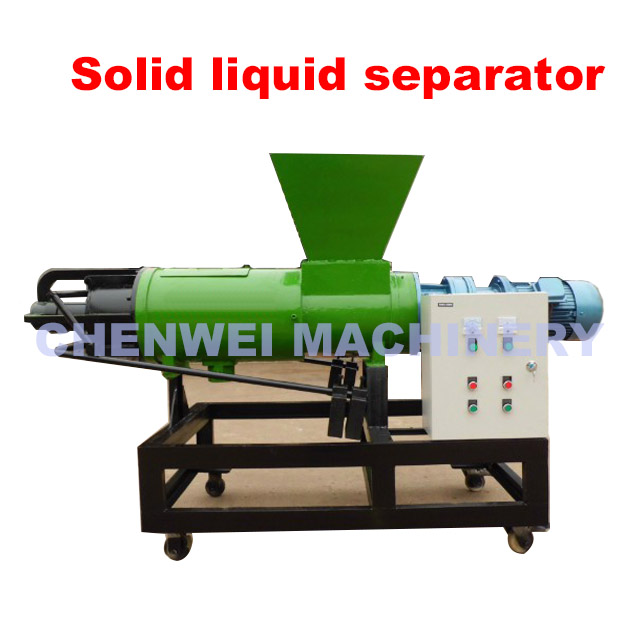

This solidliquid separator mainlyconsist of cast iron cylinder,screw blade,cylindrical screen, motor, bracket and control box. Using both principles of separation, by gravity and by mechanical pressing, the machine is designed to separate the liquid phase from the solid phase in a wide range of substances such as sludge, sewage, manure, solids-liquid mixtures, vegetables, processing waste and others, where the percentage of liquid inside the solid may be considerably different.

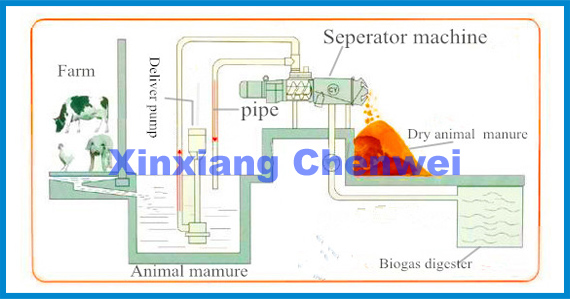

The machine use a submerged pump to pull the liquid manure such as cow dung,pig manure,chicken manure etc into machine,the material are progressively pressed and pushed by screw blade ,then the dry material will be discharged through outlet ,meanwhile,the liquid will be dischargedthrough cylindrical screen. This machine can be used for a wide range of materials without any manual adjustment.
The main purpose of this machine is to separate animal manure into two types of fertilizer,i.e. liquid type organic fertilizer and solid type organic fertilizer.
This solidliquid separator mainlyconsist of cast iron cylinder,screw blade,cylindrical screen, motor, bracket and control box. Using both principles of separation, by gravity and by mechanical pressing, the machine is designed to separate the liquid phase from the solid phase in a wide range of substances such as sludge, sewage, manure, solids-liquid mixtures, vegetables, processing waste and others, where the percentage of liquid inside the solid may be considerably different.
The machine use a submerged pump to pull the liquid manure such as cow dung,pig manure,chicken manure etc into machine,the material are progressively pressed and pushed by screw blade ,then the dry material will be discharged through outlet ,meanwhile,the liquid will be dischargedthrough cylindrical screen. This machine can be used for a wide range of materials without any manual adjustment.
The main purpose of this machine is to separate animal manure into two types of fertilizer,i.e. liquid type organic fertilizer and solid type organic fertilizer.
Feature of solid liquid separator
1.The moisture of the manure can reach as less as 40%, you can not press any water by hand. 2.The dewatered manure can been packed at once, after fermenting, it can be directly used as farmyard manure. 3.The dewatered manure can be deep processed as the material of industrial fertilizer. 4.The dewatered manure can be made as feed in the fishery industry.
Feature of solid liquid separator
1.The moisture of the manure can reach as less as 40%, you can not press any water by hand. 2.The dewatered manure can been packed at once, after fermenting, it can be directly used as farmyard manure. 3.The dewatered manure can be deep processed as the material of industrial fertilizer. 4.The dewatered manure can be made as feed in the fishery industry.
Model
CW-SLA
CW-SLB
Power
4KW
5.5KW
Voltage
220V/380V/415V (can be customized)
Screen filter type
Stainless steel wedge-shaped
Screw auger
Stainless steel 304
Inlet
Hopper feeding way
Pump feeding way
Weight
600KG
680KG
Processing material
Handling capacity (m3/h)
CW-SLA
CW-SLB
Cow manure
Solid
4-6
6-8
Liquid
10-15
15-20
Pig manure
Solid
4-6
6-8
Liquid
10-15
15-20
Chicken manure (Solid)
2-3
4-6
Slaughterhouse waste water
10-15
15-25
Biogas waste
7-9
10-15
Other waste residue
10-15
Note:the data as above is just for reference,the final capacity is decided according to the nature of the raw material and feeding rate.
Model
CW-SLA
CW-SLB
Power
4KW
5.5KW
Voltage
220V/380V/415V (can be customized)
Screen filter type
Stainless steel wedge-shaped
Screw auger
Stainless steel 304
Inlet
Hopper feeding way
Pump feeding way
Weight
600KG
680KG
Processing material
Handling capacity (m3/h)
CW-SLA
CW-SLB
Cow manure
Solid
4-6
6-8
Liquid
10-15
15-20
Pig manure
Solid
4-6
6-8
Liquid
10-15
15-20
Chicken manure (Solid)
2-3
4-6
Slaughterhouse waste water
10-15
15-25
Biogas waste
7-9
10-15
Other waste residue
10-15
Note:the data as above is just for reference,the final capacity is decided according to the nature of the raw material and feeding rate.
