CW-1.0
chenwei
◆ Equipped with a liquid addition system that can add various liquids (water, oil, honey, etc.)
◆ Double layer blade design inside and outside, symmetrical installation, special arrangement structure, higher mixing uniformity, shorter mixing cycle, and higher production efficiency; Mixing time 1-3 minutes, coefficient of variation CV ≤ 5%
◆ Adopting a hard tooth surface reducer and direct connection transmission with the rotor; Smooth and reliable transmission, long service life, and low maintenance cost

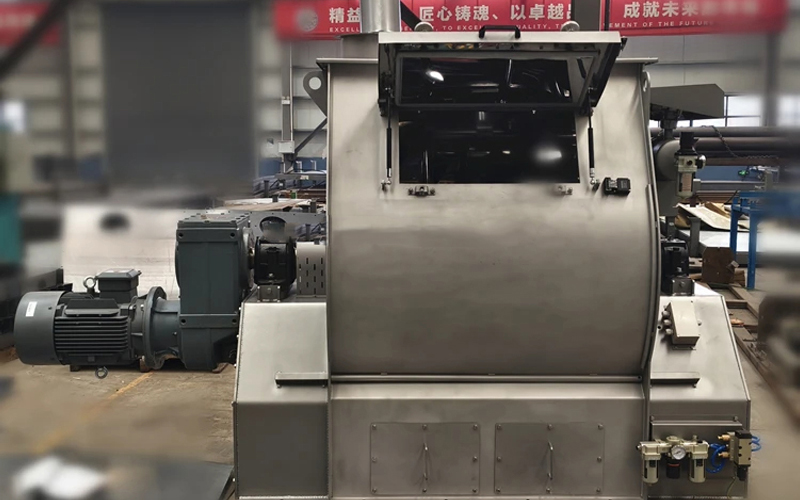

Adopting a fully extended door opening form, the material is discharged quickly to ensure no residue and prevent cross contamination
◆ Equipped with safety interlock devices to ensure personal safety
| Model | Power(kw) | Effective volume(m³) | Mixed weight (t/p) | Mixing time(min) |
| CW-0.5 | 5.5 | 0.5 | 250 | 1-3 |
| CW-1.0 | 15 | 1.0 | 500 | |
| CW-2.0 | 22 | 2.0 | 1000 | |
| CW-4.0 | 37 | 4.0 | 2000 | |
| CW-6.0 | 45 | 6.0 | 3000 | |
| CW-8.0 | 90 | 8.0 | 4000 | |
| Note: Batch mixing according to material bulk density 0.5t/m³ | ||||
