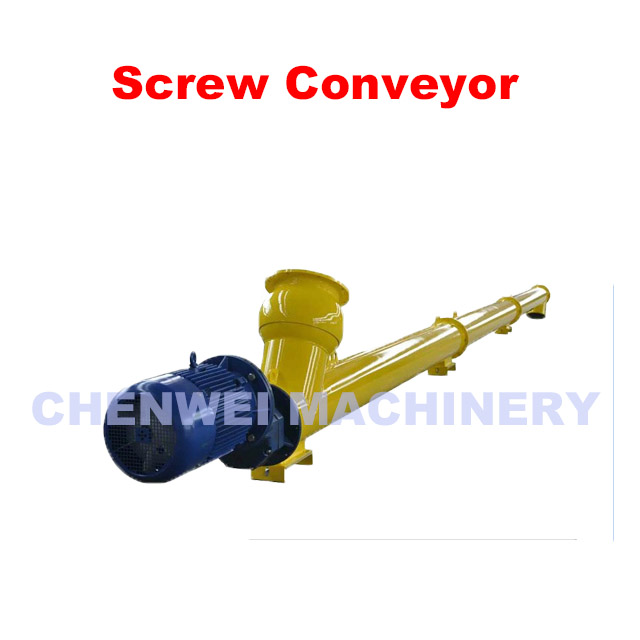

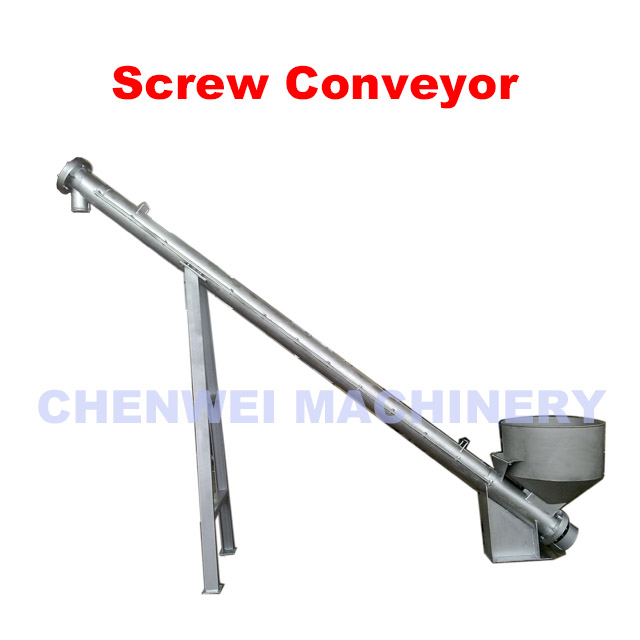

Introduction of Screw conveyor Screw conveyors,also known as auger conveyor,spiral conveyor, are made for simple conveying duties applications. The real strength of our company, however, is our ability to produce individually designed units that include features to overcome awkward installations, materials that are difficult to handle, or include performance or process functions beyond simple conveying. Some requirements may be concerned with aspects of hygiene, others with bulk solids that have poor or delicate conveying properties. Screw conveyor is divided in two types rigid screw conveyor and shaftless screw conveyor. Rigid screw conveyor is suitable for non-sticky powder and small particle material such as cement,fly ash,lime,flour,starch,food additive etc. Shaftless screw conveyor is suitable for sticky and easy winding materials such as sludge, biomass.
Features of screw conveyor *Tube type and U shape type available *It can be designed inclined conveying,horizontal conveying and vertical conveying. *Widely used for all kinds of powder,particles,small block and loose material. *not suitable for conveying perishable material,high viscosity,less pressure resistant material. *not suitable for agglomerate or high temperature material. *not suitable for great corrosive special material and fragile material.
Introduction of Screw conveyor Screw conveyors,also known as auger conveyor,spiral conveyor, are made for simple conveying duties applications. The real strength of our company, however, is our ability to produce individually designed units that include features to overcome awkward installations, materials that are difficult to handle, or include performance or process functions beyond simple conveying. Some requirements may be concerned with aspects of hygiene, others with bulk solids that have poor or delicate conveying properties. Screw conveyor is divided in two types rigid screw conveyor and shaftless screw conveyor. Rigid screw conveyor is suitable for non-sticky powder and small particle material such as cement,fly ash,lime,flour,starch,food additive etc. Shaftless screw conveyor is suitable for sticky and easy winding materials such as sludge, biomass.
Features of screw conveyor *Tube type and U shape type available *It can be designed inclined conveying,horizontal conveying and vertical conveying. *Widely used for all kinds of powder,particles,small block and loose material. *not suitable for conveying perishable material,high viscosity,less pressure resistant material. *not suitable for agglomerate or high temperature material. *not suitable for great corrosive special material and fragile material.
Model
Spiral Diameter (mm)
Screw-pitch (mm)
Horizontal conveyor Speed ( m/min)
Horizontal conveyor Speed ( m/min)
CWLS-100
100
100
140
112
CWLS-160
160
160
112
90
CWLS-200
200
200
100
80
CWLS-250
250
250
90
71
CWLS-315
315
315
80
63
CWLS-500
500
500
63
50
CWLS-630
630
630
50
40
CWLS-800
800
800
40
32
CWLS-1000
1000
1000
32
25
CWLS-1250
1250
1250
25
20
Model
Spiral Diameter (mm)
Screw-pitch (mm)
Horizontal conveyor Speed ( m/min)
Horizontal conveyor Speed ( m/min)
CWLS-100
100
100
140
112
CWLS-160
160
160
112
90
CWLS-200
200
200
100
80
CWLS-250
250
250
90
71
CWLS-315
315
315
80
63
CWLS-500
500
500
63
50
CWLS-630
630
630
50
40
CWLS-800
800
800
40
32
CWLS-1000
1000
1000
32
25
CWLS-1250
1250
1250
25
20
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
