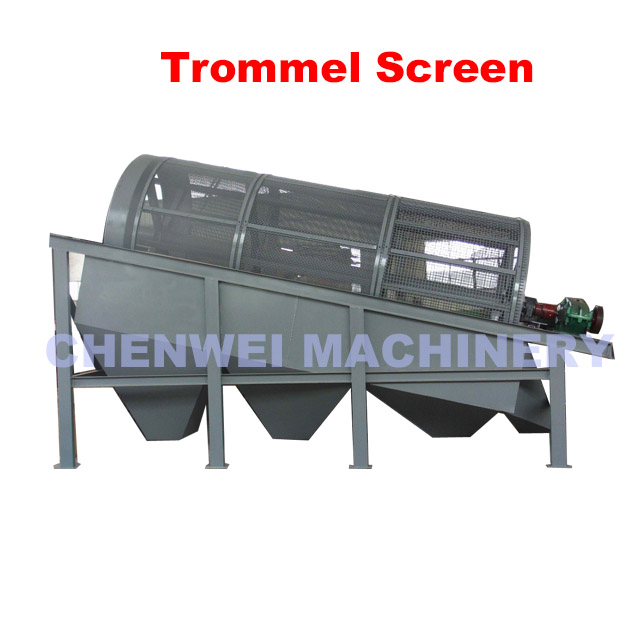

The trommel screen , also known as rotary screen,compost sieve or drum screen, is an essential unit which is used mainly in the mineral and solid waste processing industries. It consists of amotor, reduction unit, cylindrical drum, screen frame and sealing cover,which is normally elevated at an angle at the feed end. Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum. Trommel screen can be used in a variety of applications such as classification of solid waste and recovery of valuable minerals from raw materials. Trommels come in many designs such as concentric screens, series or parallel arrangement and each component has a few configurations. However depending on the application required, trommels have several advantages and limitations over other screening processes .
The trommel screen , also known as rotary screen,compost sieve or drum screen, is an essential unit which is used mainly in the mineral and solid waste processing industries. It consists of amotor, reduction unit, cylindrical drum, screen frame and sealing cover,which is normally elevated at an angle at the feed end. Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum. Trommel screen can be used in a variety of applications such as classification of solid waste and recovery of valuable minerals from raw materials. Trommels come in many designs such as concentric screens, series or parallel arrangement and each component has a few configurations. However depending on the application required, trommels have several advantages and limitations over other screening processes .
Features *Widely used for fertilizer and gravel sand sieving. *Steady and smooth operation *Low power consumption,Large capacity and more durable *No noise,no vibration and low energy consumption *It can also be designed driven by V-belt.
Application Trommel screen is applied to solid waste,compost, chemical, coal, construction, gold mine, plastic, recycling,metallurgy, mineral selecting,agriculture etc.
Features *Widely used for fertilizer and gravel sand sieving. *Steady and smooth operation *Low power consumption,Large capacity and more durable *No noise,no vibration and low energy consumption *It can also be designed driven by V-belt.
Application Trommel screen is applied to solid waste,compost, chemical, coal, construction, gold mine, plastic, recycling,metallurgy, mineral selecting,agriculture etc.
Model
Diameter (mm)
Length (mm)
Capacity ( T/h)
Sieve size(mm)
Power (KW)
CWGT1015
Φ1000
1500
＜50
＜300
3.0
CWGT1020
Φ1000
2000
＜100
＜300
5.5
CWGT1225
Φ1200
2500
＜150
＜300
7.5
CWGT1530
Φ1500
3000
＜200
＜300
11
CWGT1545
Φ1500
4500
＜300
＜300
15
CWGT1848
Φ1800
4800
＜450
＜500
22
CWGT2055
Φ2000
5500
＜700
＜500
33
Model
Diameter (mm)
Length (mm)
Capacity ( T/h)
Sieve size(mm)
Power (KW)
CWGT1015
Φ1000
1500
＜50
＜300
3.0
CWGT1020
Φ1000
2000
＜100
＜300
5.5
CWGT1225
Φ1200
2500
＜150
＜300
7.5
CWGT1530
Φ1500
3000
＜200
＜300
11
CWGT1545
Φ1500
4500
＜300
＜300
15
CWGT1848
Φ1800
4800
＜450
＜500
22
CWGT2055
Φ2000
5500
＜700
＜500
33
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
