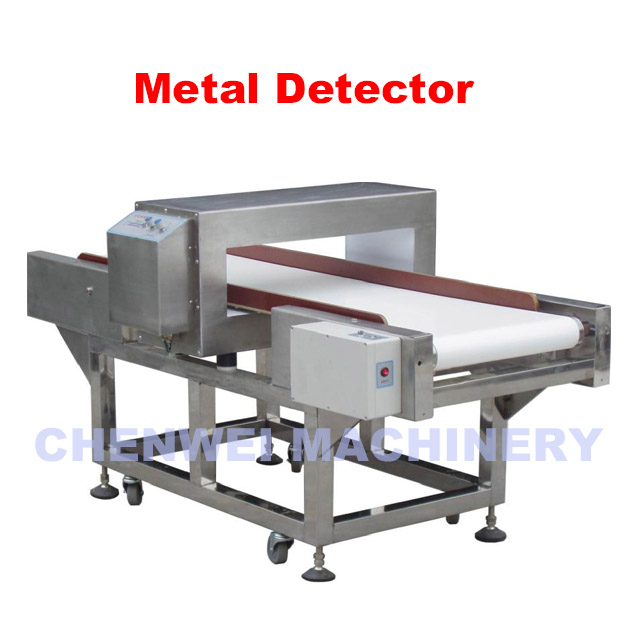

Application: The metal detector is widely used in snack food,meat and poultry products, preserved food,flour products,dried fruit,vegetables ,chemical materials ,medical drugs,cosmetics, toys , etc.. Features: Stable,high sensitivity,auto-setting function and dust, water proof,easy to be cleaned 1, Phase tracking function equipped to keep the detection stability. 2, Product tracking function equipped to carry out internal adjustment compensation automatically according to the changes of the product effect. 3, Auto-balancing function provided to extend the lifespan of the machine. 4, Adopted phase discriminating technology, which can effectively refrain product effect; Good adaptability to the aquatic products, preserved products and so on improves the detection sensitivity. 5, Adopted Single-chip and high-performance FPGA hardware program ,which optimizes the hardware system, providing the hardware base of improving the machines' performance and intelligent level. 6, Adopted auto-setting function which is convenient to adjust and easy to operate. 7, Special design of conveyor belt to avoid deviation; Reasonable conveyor structure to make it convenient to clean. 8, Full mirror stainless steel body equipped to conform IP66 dustproof and waterproof performance. 9, Memory function provided to register various products( Max. Over 100 items) 10,Digital interface such as USB and Ethernet interfaces are available
Application: The metal detector is widely used in snack food,meat and poultry products, preserved food,flour products,dried fruit,vegetables ,chemical materials ,medical drugs,cosmetics, toys , etc.. Features: Stable,high sensitivity,auto-setting function and dust, water proof,easy to be cleaned 1, Phase tracking function equipped to keep the detection stability. 2, Product tracking function equipped to carry out internal adjustment compensation automatically according to the changes of the product effect. 3, Auto-balancing function provided to extend the lifespan of the machine. 4, Adopted phase discriminating technology, which can effectively refrain product effect; Good adaptability to the aquatic products, preserved products and so on improves the detection sensitivity. 5, Adopted Single-chip and high-performance FPGA hardware program ,which optimizes the hardware system, providing the hardware base of improving the machines' performance and intelligent level. 6, Adopted auto-setting function which is convenient to adjust and easy to operate. 7, Special design of conveyor belt to avoid deviation; Reasonable conveyor structure to make it convenient to clean. 8, Full mirror stainless steel body equipped to conform IP66 dustproof and waterproof performance. 9, Memory function provided to register various products( Max. Over 100 items) 10,Digital interface such as USB and Ethernet interfaces are available
Model
CWMD-I
CWMD-II
Detection Width
400mm
500mm
400mm
500mm
Detection Height
80mm,120mm 150mm,180mm
200mm 250mm
80mm,120mm 150mm,180mm
200mm 250mm
Sensitivity
Fe
Φ0.5mm,Φ0.6mm Φ0.7mm,Φ0.8mm
Φ1.0mm Φ1.2mm
Φ0.5mm,Φ0.6mm Φ0.7mm,Φ0.8mm
Φ1.0mm Φ1.2mm
SUS304
Φ1.0mmΦ1.2mm Φ1.5mmΦ2.0mm
Φ2.0mm Φ2.5mm
Φ0.8mm,Φ1.0mm Φ1.2mm,Φ1.5mm
Φ1.5mm Φ2.0mm
Belt Width
360mm
460mm
360mm
460mm
Loading Capacity
5~10kg
20~100kg
5~10kg
20~100kg
Display Mode
LCD Liquid Crystal (FDM touch screen is optional)
Operation Mode
Button Input (touch input is optional)
Product Storage Quantity
52 kinds
Packing Form
Standard plastic or cardboard, metal film (aluminum) and bulk
Conveyor Belt
Food Grade PVC (PU and Chain Conveyor are optional)
Belt Speed
Fixed 25m/min (Variable speed is optional)
Alarm
Alarm and belt stops (Alarm lamp and rejecter are optional)
Power Supply
AC110V/220V/240V
Main Material
SUS304
Model
CWMD-I
CWMD-II
Detection Width
400mm
500mm
400mm
500mm
Detection Height
80mm,120mm 150mm,180mm
200mm 250mm
80mm,120mm 150mm,180mm
200mm 250mm
Sensitivity
Fe
Φ0.5mm,Φ0.6mm Φ0.7mm,Φ0.8mm
Φ1.0mm Φ1.2mm
Φ0.5mm,Φ0.6mm Φ0.7mm,Φ0.8mm
Φ1.0mm Φ1.2mm
SUS304
Φ1.0mmΦ1.2mm Φ1.5mmΦ2.0mm
Φ2.0mm Φ2.5mm
Φ0.8mm,Φ1.0mm Φ1.2mm,Φ1.5mm
Φ1.5mm Φ2.0mm
Belt Width
360mm
460mm
360mm
460mm
Loading Capacity
5~10kg
20~100kg
5~10kg
20~100kg
Display Mode
LCD Liquid Crystal (FDM touch screen is optional)
Operation Mode
Button Input (touch input is optional)
Product Storage Quantity
52 kinds
Packing Form
Standard plastic or cardboard, metal film (aluminum) and bulk
Conveyor Belt
Food Grade PVC (PU and Chain Conveyor are optional)
Belt Speed
Fixed 25m/min (Variable speed is optional)
Alarm
Alarm and belt stops (Alarm lamp and rejecter are optional)
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
