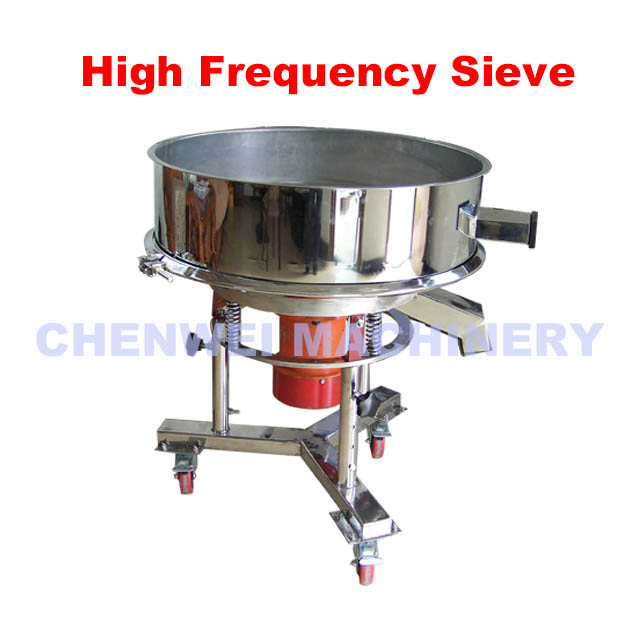

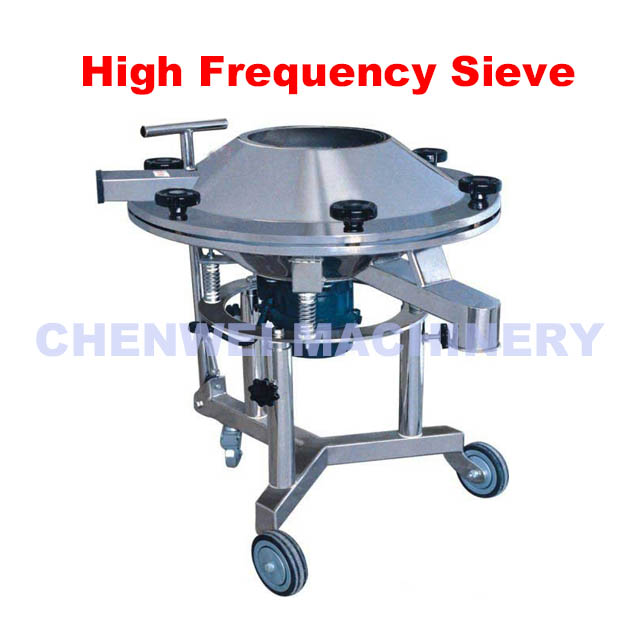

Introduction The model of high frequency vibrating sieve is special for sieving glaze, pigment and highly viscous fluids. The very high frequency vibration movement enables the use of meshes with very fine mesh size. The trolley,which is adjustable in height, makes the machine easy to move around in production lines and in preparation and storage departments.
Working principle Basically, the high frequency vibrating screen is a vibratory screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product ... wet or dry ... heavy or light ... coarse or fine ... hot or cold.
Construction features 1. Level-2 vibration motor, the speed is 3000r/min 2. The height is adjustable to fit the requirements of production line 3. Equipped with movable wheels, easy to move around
Introduction The model of high frequency vibrating sieve is special for sieving glaze, pigment and highly viscous fluids. The very high frequency vibration movement enables the use of meshes with very fine mesh size. The trolley,which is adjustable in height, makes the machine easy to move around in production lines and in preparation and storage departments.
Working principle Basically, the high frequency vibrating screen is a vibratory screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product ... wet or dry ... heavy or light ... coarse or fine ... hot or cold.
Construction features 1. Level-2 vibration motor, the speed is 3000r/min 2. The height is adjustable to fit the requirements of production line 3. Equipped with movable wheels, easy to move around
1)Chemical Industry: coating industry,cosmetic, paint 2)Grinding Materials And china Industry: alumina, quartz, slurry, kaolin, carborundum, sprayer dust. 3)Food Industry: sugar, ice powder, milk powder, soybean milk, angel cake, sauce, juice. 4)Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling. 5)Metallurgy, Mining Industry: aluminum powder,copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaolin, lime, heavy calcium carbonate. 6)Pharmacy Industry: chinese herbal medicine liquid, medicine powder, liquid and particle. 7)Disposal Of Social Wastes: disposed oil/water and assistant detergent. 8)Ceramic slurry.
1)Chemical Industry: coating industry,cosmetic, paint 2)Grinding Materials And china Industry: alumina, quartz, slurry, kaolin, carborundum, sprayer dust. 3)Food Industry: sugar, ice powder, milk powder, soybean milk, angel cake, sauce, juice. 4)Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling. 5)Metallurgy, Mining Industry: aluminum powder,copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaolin, lime, heavy calcium carbonate. 6)Pharmacy Industry: chinese herbal medicine liquid, medicine powder, liquid and particle. 7)Disposal Of Social Wastes: disposed oil/water and assistant detergent. 8)Ceramic slurry.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
