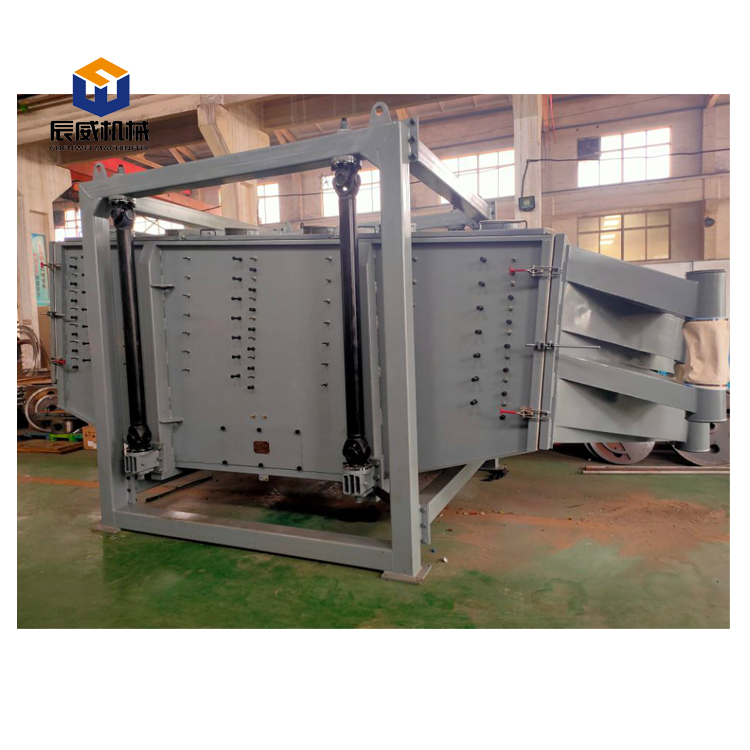

Gyratory Sifter machine is a high-efficiency screening equipment specially designed for high precision and large capacity output. It is widely used in sand, mining, chemical, non-ferrous metals, food, quartz sand, abrasive and other industry and fileds.The screen mesh frame and the screen mesh and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient. Usually two feed inlet channel aviable. 8-layer design,can be divided into 9 grades at one time. Normally this is two sets of 4 layers sieve machine working.
Machine description: Gyratory Sifter machine is a high-efficiency screening equipment specially designed for high precision and large capacity output. It is widely used in sand, mining, chemical, non-ferrous metals, food, quartz sand, abrasive and other industry and fileds.The screen mesh frame and the screen mesh and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient. Usually two feed inlet channel aviable. 8-layer design,can be divided into 9 grades at one time. Normally this is two sets of 4 layers sieve machine working.
Application background: A linear tumbler screen is now widely used in silica sand industry. For this industry,they need very high capacity and fine particle sizes sieving. But the existing machines can't reach both. If they need high capacity,the screen cloth opening must be very big. If they need fine silica sand,the capacity is too small. This linear tumbler screen solves this problem.
Machine Character: The characteristic of this machine is: -The maximum width of linear vibrating screen can be 2.6 meters. (the width is key technical factor to capacity). -The maximum length of linear tumbler screen can be 6 meters. (the length is key technical factor to sieving efficiency). -The machine is installed with non-vibration motor. (The service life is much longer since no vibration movement). -The material moves in two motions: upward-backward,leftward-rightward only. （No upward and downward movement）
Machine working principle: Theoretically speaking,the longer the material stays on the screen cloth surface,the better sieving efficiency it will get. For the other types of sieving machines,they have three movement :upward-backward,leftward-rightward,upward-downward. When the material is moving up,it couldn't touch the screen surface,this means it is no sieving during this movement. A linear tumbler screen removes this movement,save much time,and keeps the material in contact with screen cloth all the sieving process. -The machine can be made 8 layer maximum,which has four oversized outlet and four undersized outlet. It likes four linear vibrating screen combined in one machine. The four layers can be the same size or different sizes.
Application filed: -It already had a very good feedback from silica sand industry. -It applies for materials has irregular shapes. -It applies for big plant that need one machine to reach very high capacity.
Machine description: Gyratory Sifter machine is a high-efficiency screening equipment specially designed for high precision and large capacity output. It is widely used in sand, mining, chemical, non-ferrous metals, food, quartz sand, abrasive and other industry and fileds.The screen mesh frame and the screen mesh and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient. Usually two feed inlet channel aviable. 8-layer design,can be divided into 9 grades at one time. Normally this is two sets of 4 layers sieve machine working.
Application background: A linear tumbler screen is now widely used in silica sand industry. For this industry,they need very high capacity and fine particle sizes sieving. But the existing machines can't reach both. If they need high capacity,the screen cloth opening must be very big. If they need fine silica sand,the capacity is too small. This linear tumbler screen solves this problem.
Machine Character: The characteristic of this machine is: -The maximum width of linear vibrating screen can be 2.6 meters. (the width is key technical factor to capacity). -The maximum length of linear tumbler screen can be 6 meters. (the length is key technical factor to sieving efficiency). -The machine is installed with non-vibration motor. (The service life is much longer since no vibration movement). -The material moves in two motions: upward-backward,leftward-rightward only. （No upward and downward movement）
Machine working principle: Theoretically speaking,the longer the material stays on the screen cloth surface,the better sieving efficiency it will get. For the other types of sieving machines,they have three movement :upward-backward,leftward-rightward,upward-downward. When the material is moving up,it couldn't touch the screen surface,this means it is no sieving during this movement. A linear tumbler screen removes this movement,save much time,and keeps the material in contact with screen cloth all the sieving process. -The machine can be made 8 layer maximum,which has four oversized outlet and four undersized outlet. It likes four linear vibrating screen combined in one machine. The four layers can be the same size or different sizes.
Application filed: -It already had a very good feedback from silica sand industry. -It applies for materials has irregular shapes. -It applies for big plant that need one machine to reach very high capacity.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
