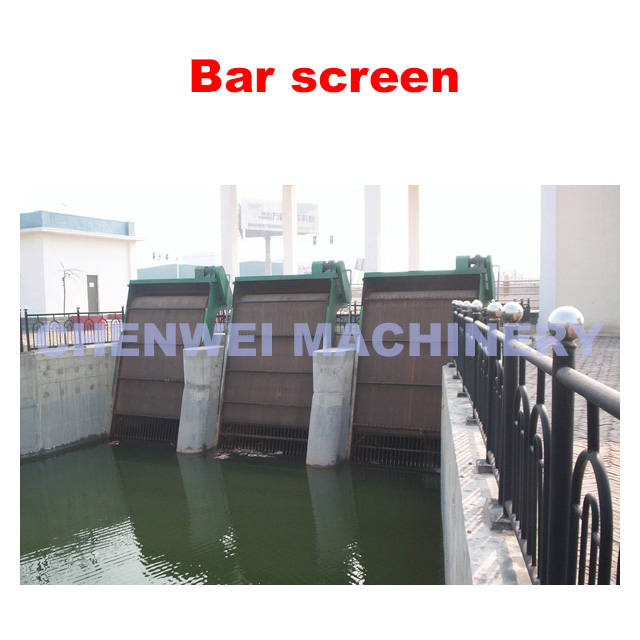

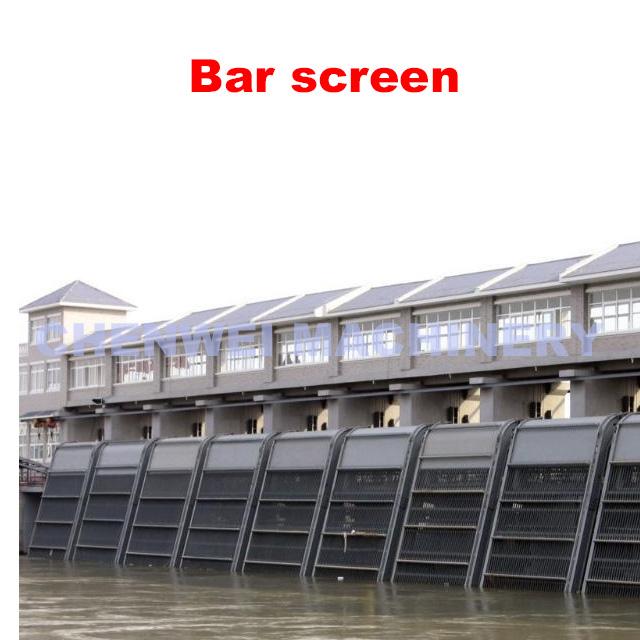

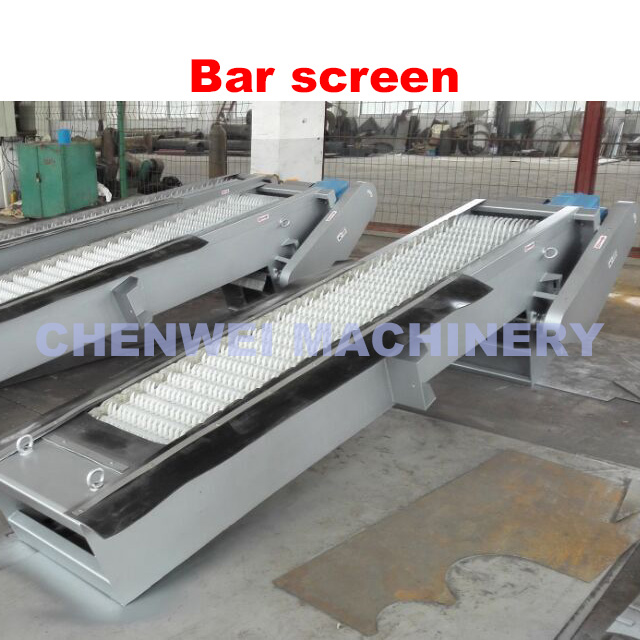

Description The bar Screen is perfectly suited to both municipal and industrial waste water, and process water screening. The cleaning elements, attached to the chain system, can easily be adjusted to different requirements. These elements are rake tooth and brushes. Each chain is driven by a sprocket on a common shaft and a flange mounted gear motor. If the screen operation is blocked, a mechanical over load protection interrupts the operation. Benefits: *Very low head loss ,high separation efficiency. *Compact design with a low installation height above ground level. *The teeth belt cleaning the screening continuously and cut down most of the polluting load. *The screen consists of a self-supporting folded stainless steel profile so that it caneasily be lofted out of the channel. *Simple and easy-to-access chain tensioning unit. *All parts in contact with medium are made of stainless steel. *High screening discharge capacity through adjustable cleaning elements.
Description The bar Screen is perfectly suited to both municipal and industrial waste water, and process water screening. The cleaning elements, attached to the chain system, can easily be adjusted to different requirements. These elements are rake tooth and brushes. Each chain is driven by a sprocket on a common shaft and a flange mounted gear motor. If the screen operation is blocked, a mechanical over load protection interrupts the operation. Benefits: *Very low head loss ,high separation efficiency. *Compact design with a low installation height above ground level. *The teeth belt cleaning the screening continuously and cut down most of the polluting load. *The screen consists of a self-supporting folded stainless steel profile so that it caneasily be lofted out of the channel. *Simple and easy-to-access chain tensioning unit. *All parts in contact with medium are made of stainless steel. *High screening discharge capacity through adjustable cleaning elements.
Model

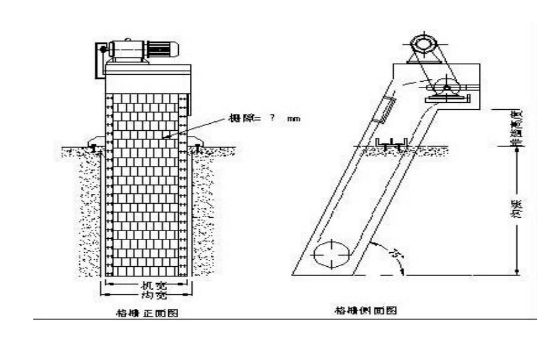

Installation angle
Speed
Channel Width
Channel Depth
Machine Width
Media Temperature
Power
CWBS3
60°-- 80°
2M/min
400
1000- 12000mm
300
≤85°
0.37kw
CWBS4
600
500
0.55kw
CWBS5
800
700
0.55kw
CWBS6
1000
900
0.75kw
CWBS7
1200
1100
1.1kw
CWBS8
1400
1300
1.1kw
CWBS9
1600
1500
1.5kw
Model
Installation angle
Speed
Channel Width
Channel Depth
Machine Width
Media Temperature
Power
CWBS3
60°-- 80°
2M/min
400
1000- 12000mm
300
≤85°
0.37kw
CWBS4
600
500
0.55kw
CWBS5
800
700
0.55kw
CWBS6
1000
900
0.75kw
CWBS7
1200
1100
1.1kw
CWBS8
1400
1300
1.1kw
CWBS9
1600
1500
1.5kw
1. During operation, if there is fiber debris blocking the tooth rake chains, clean up it timely to avoid affecting its normal operation. 2、During the normal operation, use grease gun to inject grease into lubricating nipples every two months. 3、Regularly replace reducer lubricating oil. For ordinary equipment which is in operation for half a month, it need changing new oil. Afterwards, change its oil every three months. At ordinary times, pay attention to the reducer oil level.
1. During operation, if there is fiber debris blocking the tooth rake chains, clean up it timely to avoid affecting its normal operation. 2、During the normal operation, use grease gun to inject grease into lubricating nipples every two months. 3、Regularly replace reducer lubricating oil. For ordinary equipment which is in operation for half a month, it need changing new oil. Afterwards, change its oil every three months. At ordinary times, pay attention to the reducer oil level.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
