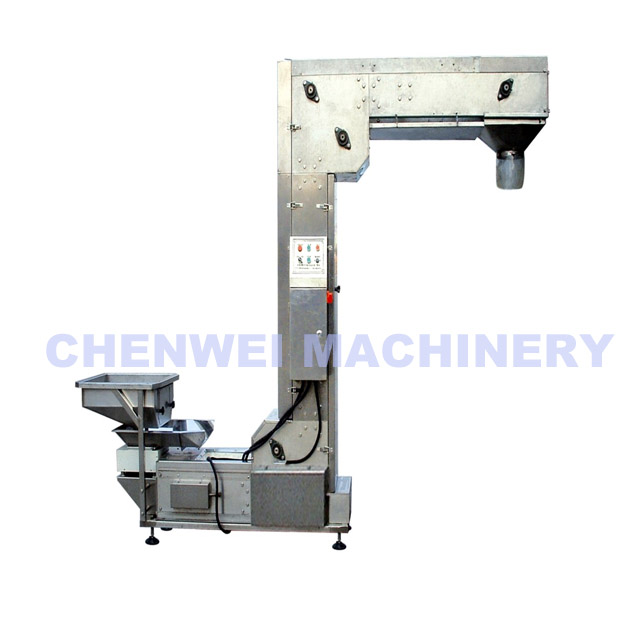

Z Type Bucket Elevator
You are here: Home » Product » Conveying and lifting Machine » Z Type Bucket Elevator
Share to:

Z Type Bucket Elevator

Stainless steel or mild steel
Multi-discharge available
PPR Bucket food grade

  • CW
  • 1.8L / 3.8L / 6.5L
  • Zero-broken for fragile material
  • Customized
  • 12 months
  • PP,stainless steel or mild steel
  • Adjustable
Working principle:
This machine is made of stainless steel and food grade plastic (PP). It has automatic function of the automatic feeding and stop feeding by control circuit and hopper control. The machine  can be widely applied in vertical convey for solid food, such as foodstuff, feedstuff and so on. This machine has large conveying capacity, high conveying height . Its always used in  convert with the automatic packaging system in the food packaging industry.
1,The bucket is made of food grade PP material,which can resist the high or low temperature.
2,The bucket elevator can supply good solution not only for single discharge but also for multi-discharge.
3,Easy to operate and clean.
Application: Bucket Elevators are widely used in food, agriculture, pharmaceutical, cosmetic,  chemical industry, .such as snack foods, frozen foods, vegetables, fruits, confectionary.  Chemicals and other granules.
Bucket Volume 1.8L 3.8L 6.5L
Bucket Material PP or stainless steel
No.s of Outlet single Single or Multi-discharge port
Body material Carbon steel ,stainless steel 304,stainless steel 316L
Output 4-6M3/H 6.5-8M3/H 5.5-12M3/H
Voltage 220V/240V/380V/415V/440V or as required
Power 0.75KW 1.5KW 2.2KW
Vibrating feeder
(even feeding)
Frequency controller Option
Level controller Option
Surface treatment Powder coating or painting

Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
