Teeth Roller Crusher

Double roller
Mild steel
Blue,Grey

Quantity:
  • CWTRC300
  • CHENWEI
  • 300mm
  • 3~30 mm
  • 50-800 ton/h
  • 45-355kw
When the crusher is working,the teeth roller of crusher is driven by motor which make the two roller rotate in opposite direction.When raw material enter the crusher the teeth roller will   crush them into small particles and the small particle will be discharged under the bottom of  the crusher directly.By adjusting the distance between the two teeth roller,the finished  material size can be changed!

It is widely used for secondary and fine crushing in the industry of mining, building materials,  chemical industry, metallurgy and so on. It can crush materials in middle hardness such as  rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.

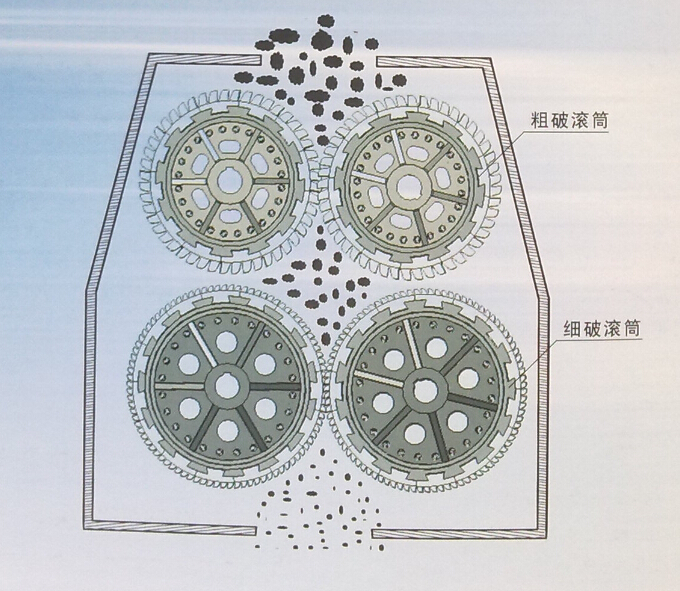

illustration
Model Capacity(T/H) Power(KW) Size Weight (T)
CWTRC50 50 45 1650*3300*1800 10
CWTRC100 100 55 1850*3900*2300 18
CWTRC200 200 110 2100*4500*2600 28
CWTRC300 300 160 2650*4500*2650 35
CWTRC450 450 220 2900*4700*2750 38
CWTRC600 600 280 2900*6300*2800 43
CWTRC800 800 360 2900*7300*2500 55
