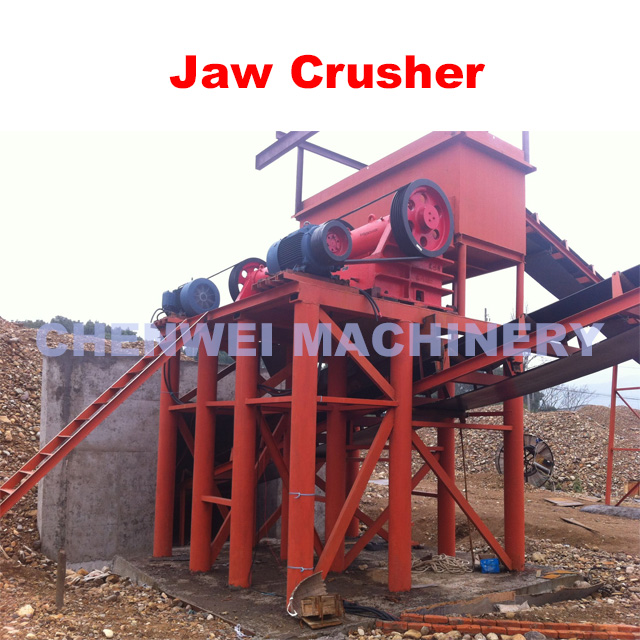

Mining Jaw Crusher

Jaw crusher
Yellow,Grey

Quantity:
  • CW-750×1060
  • CHENWEI
Working principle of jaw crusher

The main structure of the  stone jaw crusher are composed of stander, eccentric shaft, belt  pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed   jaw plate. The wrist plate also has the effect of guarding.
This  Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt  and belt pulley to make the movable jaw move through the eccentric shaft. When movable  jaw is rising ,the included angle between the wrist plate and movable jaw become bigger to  drive the movable plate to be close to the movable plate. At the same time the material is  squeezed and rubbed, rolled to achieve multiple crushing.

Jaw crusher is mainly used for coarse crushing and middle crushing, and is widely used in  mining, metallurgy, building material, highway, railway, water conservancy, and chemical   industries, the largest compression resistance of the material is 320Mpa.


* High ratio of crushing, uniform product size;
*Simple structure, easy maintenance, low operation cost;
*Discharge range can be adjusted, so it can satisfy different customers' requirement;
*Large capacity, deep crushing cavity, improving input ability and capacity;
*Forging eccentric shaft is by manufactured heat treatment.

Model Feed opening
(mm)
Max.Feed size (mm) Discharge opening range(mm) Capacity
(m³/h)
Power
(kw)
Weight
(t)
CW-150×250 150×250 125 10-40 1-4 5.5 0.81
CW-250×400 250×400 210 20-80 5-21 15 2.8
CW-400×600 400×600 340 40-100 16-64 30 6.5
CW-500×750 500×750 425 50-100 45-100 55 10.3
CW-600×900 600×900 500 65-160 48-120 55/75 15.5
CW-750×1060 750×1060 630 80-140 51-208 110 28
CW-800×1060 800×1060 650 100-160 136-250 110 30
CW-870×1060 870×1060 660 200-260 181-260 110 30.5
CW-900×1200 900×1200 750 100-200 144-304 132 50
CW-1000×1200 1000×1200 850 195-265 315-342 132 51
CW-1200×1500 1200×1500 1000 150-350 300-800 220 83
CW-1500×1800 1500×1800 1200 220-350 450-1000 355 122
