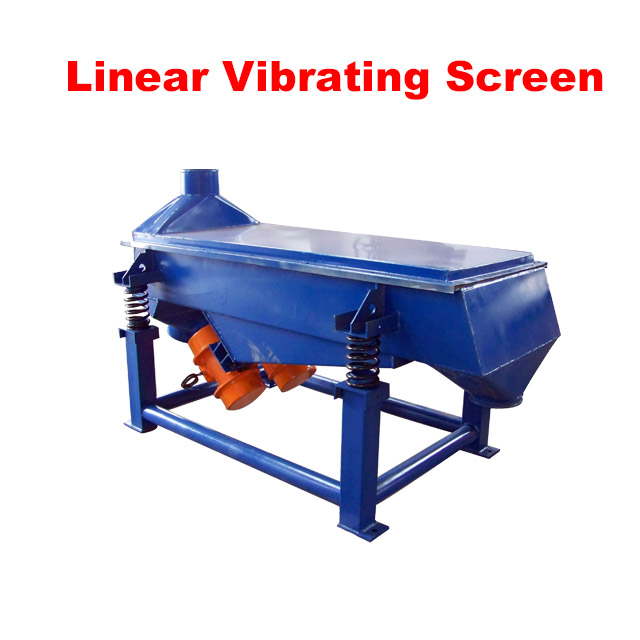

ZSQ series light linear vibrating screen is a standard and universal screening equipment.The movement track of its screen box is close to straight line.Almost all the linear vibrating machine are consisted of the screen box,supporting or hanging device,driving unit, vibration isolation etc.
Linear screen uses double vibrating motors to drive,when two motors rotate synchronously and reversely,exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axis relative to the screen deck.Under the influence of the resultant force of exciting force and materials itself weight,materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatic operation.
ZSQ series light linear vibrating screen is a standard and universal screening equipment.The movement track of its screen box is close to straight line.Almost all the linear vibrating machine are consisted of the screen box,supporting or hanging device,driving unit, vibration isolation etc.
Linear screen uses double vibrating motors to drive,when two motors rotate synchronously and reversely,exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axis relative to the screen deck.Under the influence of the resultant force of exciting force and materials itself weight,materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatic operation.
Model
ZSQ-520
ZSQ-840
ZSQ-1030
ZSQ-1255
ZSQ-1650
Dimension(mm)
500*2000
800*4000
1000*3000
1200*5500
1600*5000
Granularity(mm)
0.074-60
0.074-60
0.074-60
0.074-60
0.074-60
Amplitude
4-8
4-8
4-8
4-8
4-8
Deck
1-4
1-4
1-4
1-4
1-4
Power(kw)
2×0.75
2×1.5
2×1.9
2×2.2
2×3.0
Model
ZSQ-520
ZSQ-840
ZSQ-1030
ZSQ-1255
ZSQ-1650
Dimension(mm)
500*2000
800*4000
1000*3000
1200*5500
1600*5000
Granularity(mm)
0.074-60
0.074-60
0.074-60
0.074-60
0.074-60
Amplitude
4-8
4-8
4-8
4-8
4-8
Deck
1-4
1-4
1-4
1-4
1-4
Power(kw)
2×0.75
2×1.5
2×1.9
2×2.2
2×3.0
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
