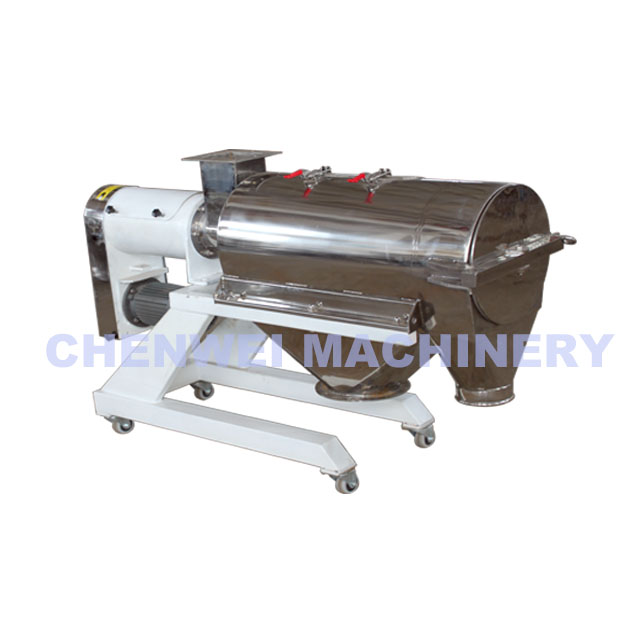

Brief Introduction & Working Principle --Centrifugal Sifter The screen holder is placed inside the machine. Bulk materials mixed with airflow and atomization pass the screw conveyor device, enter the screen holder. The undersize materials are sprayed through the screen cloth and discharged from the outlet under the action of centrifugal force and the cyclone propelling power, which caused by the blade inside the net tube. The oversize material, which can not cross the screen cloth, is discharged from the rough material outlet along the inside surface of the tube. Cantilevered design and twin screen holder design are available.
Features *Very smart but large capacity for light materials(such as starch,flour,lime powder,etc.) *Mesh size should not be higher than 325 mesh *No oversize end bearings or seals Hinged oversize end door. *Easy to remove screen and screen retainer Hygienic design sifting screen. *The sifter can be stripped down for cleaning without the need for specialist assistance . *Full sealing makes this machine dust proof. *No transmitted vibration . *Easy to inspect and/or clean No tools required for screen, paddle and screw removal. *Sanitary design and fast disassembly without tools
Brief Introduction & Working Principle --Centrifugal Sifter The screen holder is placed inside the machine. Bulk materials mixed with airflow and atomization pass the screw conveyor device, enter the screen holder. The undersize materials are sprayed through the screen cloth and discharged from the outlet under the action of centrifugal force and the cyclone propelling power, which caused by the blade inside the net tube. The oversize material, which can not cross the screen cloth, is discharged from the rough material outlet along the inside surface of the tube. Cantilevered design and twin screen holder design are available.
Features *Very smart but large capacity for light materials(such as starch,flour,lime powder,etc.) *Mesh size should not be higher than 325 mesh *No oversize end bearings or seals Hinged oversize end door. *Easy to remove screen and screen retainer Hygienic design sifting screen. *The sifter can be stripped down for cleaning without the need for specialist assistance . *Full sealing makes this machine dust proof. *No transmitted vibration . *Easy to inspect and/or clean No tools required for screen, paddle and screw removal. *Sanitary design and fast disassembly without tools
Model
Diameter (mm)
Sieve length(mm)
Rotate Speed ( m/min)
Layer
Sieve size(mesh)
Air pressure
Power (KW)
BL18-65
Φ180
Φ650
1450
1
Below 325
0.2mpa
2.2
BL30-80
Φ300
Φ800
1450
1
Below 325
0.2mpa
2.5
BL30-100
Φ300
Φ1000
1450
1
Below 325
0.2mpa
3.0
BL40-80
Φ400
Φ800
1450
1
Below 325
0.2mpa
4.0
BL40-100
Φ400
Φ1000
1450
1
Below 325
0.4mpa
4.0
BL50-130
Φ500
Φ1300
1450
1
Below 325
0.4mpa
6.5
BL65-150
Φ650
Φ1500
1450
1
Below 325
0.4mpa
9.0
BL65-185
Φ650
Φ1850
1450
1
Below 325
0.4mpa
11.0
Model
Diameter (mm)
Sieve length(mm)
Rotate Speed ( m/min)
Layer
Sieve size(mesh)
Air pressure
Power (KW)
BL18-65
Φ180
Φ650
1450
1
Below 325
0.2mpa
2.2
BL30-80
Φ300
Φ800
1450
1
Below 325
0.2mpa
2.5
BL30-100
Φ300
Φ1000
1450
1
Below 325
0.2mpa
3.0
BL40-80
Φ400
Φ800
1450
1
Below 325
0.2mpa
4.0
BL40-100
Φ400
Φ1000
1450
1
Below 325
0.4mpa
4.0
BL50-130
Φ500
Φ1300
1450
1
Below 325
0.4mpa
6.5
BL65-150
Φ650
Φ1500
1450
1
Below 325
0.4mpa
9.0
BL65-185
Φ650
Φ1850
1450
1
Below 325
0.4mpa
11.0
Warranty & after sales service
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Warranty & after sales service
Our machines have an automatic 12 months guarantee against faulty material and workmanship valid from the date of dispatch in China or date of arrival at foreign border.
If any problem of the machine under instruction within one year,we are responsible for replacement incuding delivery fee and maintenance.
Lifelong service is offered with cost charge after one year.
Xinxiang Chenwei Machinery Company, located in Xinxiang City,Henan Province,is specialized in providing solutions for material handling and processing, being in this field for over 30 years.
