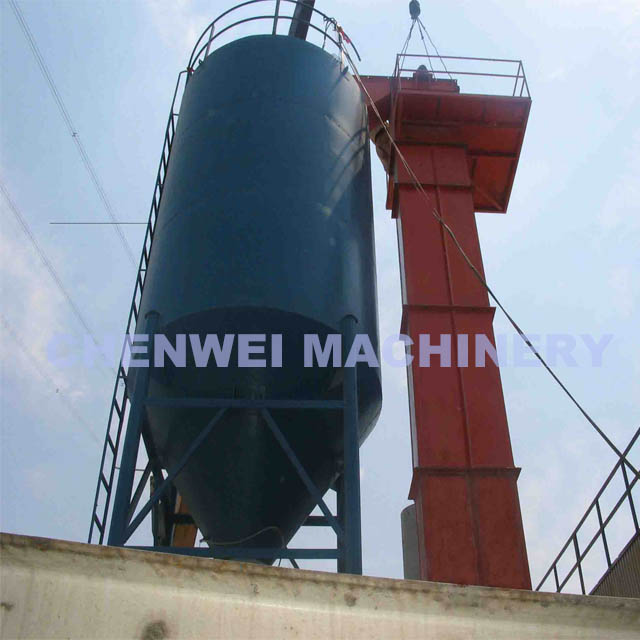

Bucket Elevator

Stainless steel or mild steel material

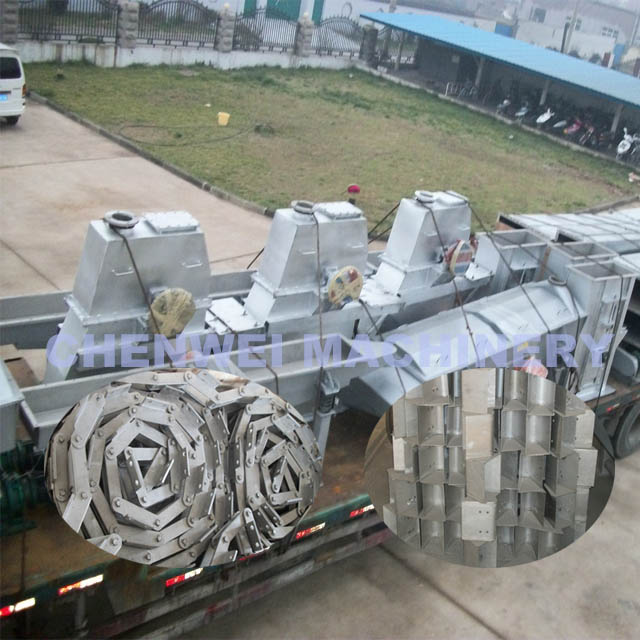

Ring chain or plate chain
Color:gray,black,silver,white
MOQ 1set

Quantity:
  • TD250
  • CHENWEI
  • Fire Resistant
  • Local brand,or ABB,SEW
  • 0.5~32L

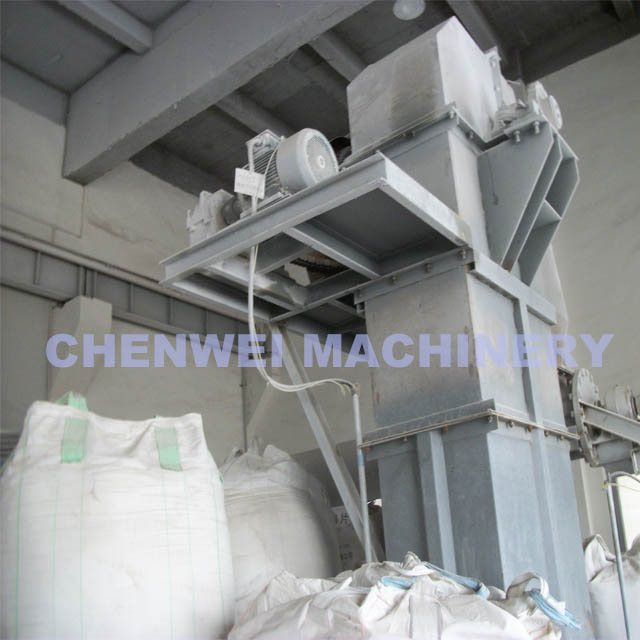

The hopper material scooped up from the following storage, with the conveyor belt or chain ascend to the top, flip down after bypass the crown chakra, bucket elevator poured material into receiving groove.
When the driving device of bucket elevator start working , it drives the pulley to make the  belt with plastic buckets to do the circular movement  from the below of the tail  to the top  of  the  head  The head section has  outlet and the tail section has inlet.

The bucket bucket is filled with material and run to the head section,then the material is   thrown out from the outlet under the action of centrifugal force according to the parabolic  design.With the running, the empty bucket is back to the below tail section and be filled  material from the inlet again,then be lifted up to do parabolic discharge movement.So this  cycle finish the vertical transport of materials.

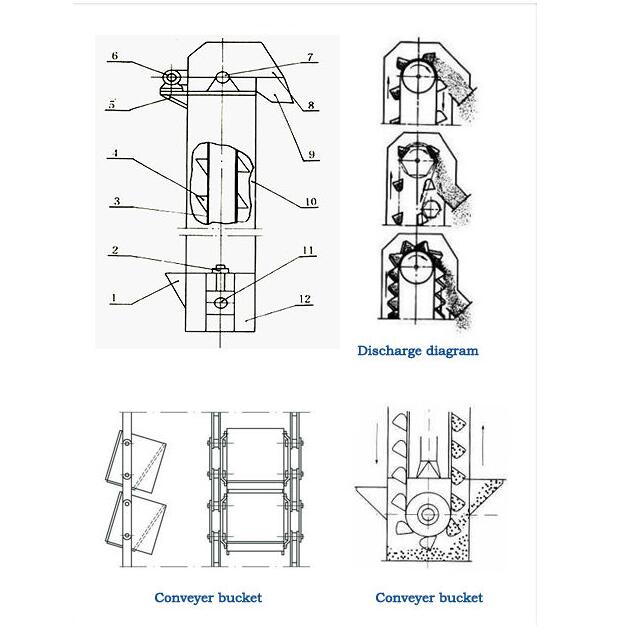

Structure of bucket elevator
Feature:

1. Excellent sealing, less environmental pollution.

2. Easy Operation and maintenance, less wearing parts.

3. Energy conservation and less maintenance ensure the machine a very low cost.

4. Advanced design principle has ensured the reliability of machine operation.

5. High accuracy. The housing case is of good rigidity and beautiful appearance by the edge folding and intermediate beading.

6. Small size. Compared with other machines which have the same lifting capacity, size of this machine is smaller.

7. HugeTransmission capacity.


Application:
It is widely used in mining ,metallurgy ,coal and other industries ,the belt conveyor can be used to transfer bulk  materials or material in pieces ,according to different transferring  requirements ,the transferring system can be of only one belt conveyor or consists of several conveyors ,or combined with other transferring  equipment .the belt conveyor can be installed horizontally or a slope to meet the needs of different transferring requirements.

TD series belt bucket elevator

Model TD160 TD250 TD315 TD400
Bucket type Q H ZD SD Q H ZD SD Q H ZD SD Q H ZD SD
Capacity(m3/h) 5.4 9.6 9.6 16 12 22 23 35 17 30 25 40 24 46 41 66
Bucket width(mm) 160 250 315 400
Bucket volume
L
0.5 0.9 4.2 1.9 1.3 2.2 3.0 4.6 2 3.6 3.8 5.8 3.1 5.6 5.9 9.4
Bucket pitch(mm) 280 350 360 450 400 500 480 560
Belt width(mm) 200 300 400 500
Bucket speed(m/s) 1.4 1.6 1.6 1.8
Max material size
(mm)
25 35 45 55
Model

TD500 TD630 TD160 TD250 TD350 TD450
Bucket type Q H ZD SD H ZD SD Q S Q S Q S Q S
Capacity(m3/h) 38 70 58 92 85 89 142 4.7 8 18 22 25 42 50 72
Bucket width(mm) 500 630 160 250 350 450
Bucket volume(L) 4.8 9 9.3 15 14 14.6 23.5 0.65 1.1 2.6 3.2 7 7.8 14.5 15
Bucket pitch(mm) 500 625 710 300 400 500 640
Belt width(mm) 600 700 200 300 400 500
Bucket speed(m/s) 1.82 2 1 1.25 1.25 1.25
Max material size
(mm)
60 70 25 35 45 55


TH Chain bucket elevator

Model Lifting capacity
(m3/h)
Bucket speed
(m/s)
Feeding size(mm) Bucket volume(L) Bucket spacing
(mm)
ZH SH ZH SH
TH160 15.77 24.97 1.4 25 1.2 1.9 500
TH200 17.87 28.6 1.4 30 1.5 2.4 500
TH250 31.43 48.19 1.4 35 3.0 4.6 500
TH315 35 60 1.4 40 3.75 6 512
TH400 58 94 1.4 45 5.9 9.5 512
TH500 75 118 1.4 50 9.3 15 688
TH630 114 185 1.4 660 14.6 23.6 688

NE Series bucket elevator


Model

Capacity
(m3/h)


Bucket speed(rpm)

Bearing speed(rpm)

Material size(mm)
Bucket

Volume
(L)

Width
(mm)

Pitch
(mm)
NE15 15




0.5
15.54 <40 2.5 250 203
NE30 32 16.45 <50 7.8 300 305
NE50 60 16.45 <50 15.7 300 305
NE100 110 14.13 <70 35 400 400
NE150 170 14.13 <70 52.2 600 400
NE200 210 10.9 <100 84.6 600 500
NE300 320 10.9 <100 127.5 600 500
NE400 380 8.3 <120 182.5 700 600
NE500 470 7.1 <120 260.9 700 700
NE600 600 7.1 <120 33.2 700 700
NE800 800 6.2 <140 501.8 800 800
