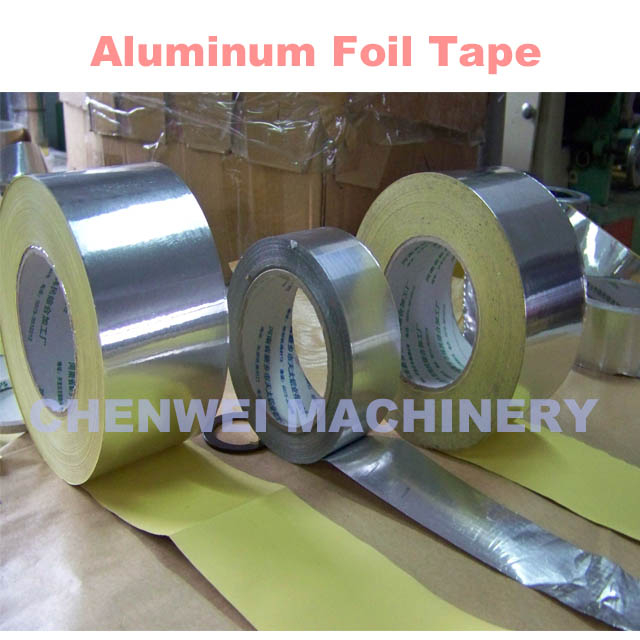

Aluminum Foil Tape

Linear color:white or yellow
Thickness:20 micron,30 micron,40 micron,50 micron
Width : 20mm-1000mm
Length:10M-1000M

Quantity:
  • Foil 30u
  • WEIMIN
  • Solvent Acrylic
  • 3%
  • Heat-resistant,fire proof
  • -30~+120 C°
  • Φ76mm(±1,0)mm
Description:
High tensile strength aluminum foil made from special high quality aluminum foil, coated with aggressive solvent based acrylic adhesive, which provide strong stickiness, good peel strength, high tensile strength and great ageing resistance.
Base Material: aluminum foil tape. Thickness can be customized
Release Paper: Single shield or according to request.
Adhesive: acrylic pressure-sensitive adhesive
Core: Φ76mm(±1,0)mm
Applications:
Widely be used in refrigeration equipmentevaporatorradiatorelectronic communications equipment and air-conditioning facility etc.




Items


Specification

Latex

Solvent Based
Adhesive Force
≥11N

≥14.7N

Enduring Tack(within 20 mins)

≤1mm

Initial Tack (steel ball number)

14#

Adhesive Force Test: In accordance with GB/T2792
Initial Tack Test: In accordance with GB/T4852
Enduring Tack Test: In accordance with GB/T4851

Product Guide
Silicone Coated Foil: 30u / Solvent Acrylic Adhesive Commercial grade. Self-wound, easy application. Good for HVAC sealing application and refrigeration industry. Excellent low temperature and high temperature resistance.
Silicone Coated Foil: 40u / Solvent Acrylic Adhesive High-grade self-wound foil tape. Excellent for sealing joints and seams of foil-faced insulation materials. Good for refrigerator industry, metal patching and sound dampening applications. Excellent low temperature and high temperature resistance.
Silicone Coated Foil: 50u / Solvent Acrylic Adhesive High-grade self-wound foil tape. Excellent for sealing joints and seams of FSK-faced insulation materials. Good for refrigerator industry, metal patching and sound dampening applications. Excellent low temperature and high temperature resistance.

Backing Adhesive Thickness
Micron
Adhesion
N/25mm
Tensile
N/25mm
Elongation
%
Service Temp.°C
Foil 30u Solvent Acrylic 70 12 45 3.0 -30 ~ +120
Foil 40u Solvent Acrylic 80 12 55 3.0 -30 ~ +120
Foil 50u Solvent Acrylic 90 12 75 3.0 -30 ~ +120
